Packaging & Delivery
Packaging Details
In nude,paiting wax before deliver to port
1. by container(40ftHQ/40ft FR)
2. by bulk ship/RORO ship
Port
Any port in china
Product Introduction:
The terminal trailer is designed and manufactured for transporting lx20’,2x20’,l x40’and lx45’ISO containers within container terminal.
More charactors of strong semi trailer you will concern :
1>Strong trailer frame was made from Q345B/Q550/Q690/HG60,The advantages of Q550/Q690/HG60 are high strength, strong bearing capacity and 2-3 times of other materials.
2>All cross beams are completely reinforced
3>Heavy duty type suspension:Mechanical, airbag, and rigid suspension to meet your transportation demand.
4>Strong low bed trailer ramp,leaf spring type,folding hydraulic type optional.
5> Two pieces spare tire carriers, water tank, fuel tank, etc, are optional accessories which build modern transportation.
Product Description
Type: 2 Axles 20ft Container Terminal Sketeal Trailer
DIMENSION:
Overall Length: 15,010mm
Overall Width: 3,000mm(Overall width with swing out outriggers=3412mm)
Overall Height: 2,680mm
King Pin Setting: 600 mm
Wheel Span: 10,480 mm
Axle Spacing: 1,310 mm
Loading Platform Length: 6,000mm
Unladen Platform Height: 850mm
King Pin Plate Height : 1,298mm
Rear tractor clearance radius: 2,400mm
RUNNING GEAR:
Suspension: Heavy duty undermount tri-axle suspension with equalizers,7-leaf spring , 42,000kg capacity.
Axles: FUWA 150×150 square Axle. Track width 2180.13ton capacity/set.
Brake: Dual Line Pneumatic Brake System with Emergency relay valve, without ABS.
Parking Brake: Type 30/30 spring brake chamber on the 1st axle, type 30 brake chamber on the 2nd and 3rd axles, made in china.
Wheel: 8.0-20,10 holes Steel Disc,13 Pcs (One spare wheel),made in china.
Tire: 11.00R20 16 Ply Rating, 13 Pcs (One spare tire), made in china.
Spare Tire carrier: One set(Two screws on gooseneck).
King Pin : 2″, bolted type; Model: JOST KZ1012.
(We suggest to use 3.5” King pin instead.)
Loading ramps: 2 Pcs. 720mm width. Ramps are spring loaded and manually operated with safety chain.
Painting: Coated with anti-rust and finishing paint.
Extended brackets: With timber leaf of 200 mm width on both side.
LANDING LEG: ( JOST C200 )
Two speed manual operation type with sand shoe.
-Lifting Capacity: 24,000kg -Static Load Capacity: 50,000kg
ELECTRICAL:
Voltage: 24 Volt.
Receptacle: 7 way
Light (LED): Front marker lamp: White
Side marker lamp: Amber
Rear lamp: Red
Turn signal lamp: Amber
STRUCTURAL WEIGHT RATTING(estimated):
Tare Weight : 12,150kg (approximation)
Payload : 40,000kg
G.V.W.R.: 52,150kg
King Pin Weight : 23,300kg (approximation)
Axle Weight: 28,850kg (approximation)
Note:All the details not mentioned above should comply with Chinese regulations.

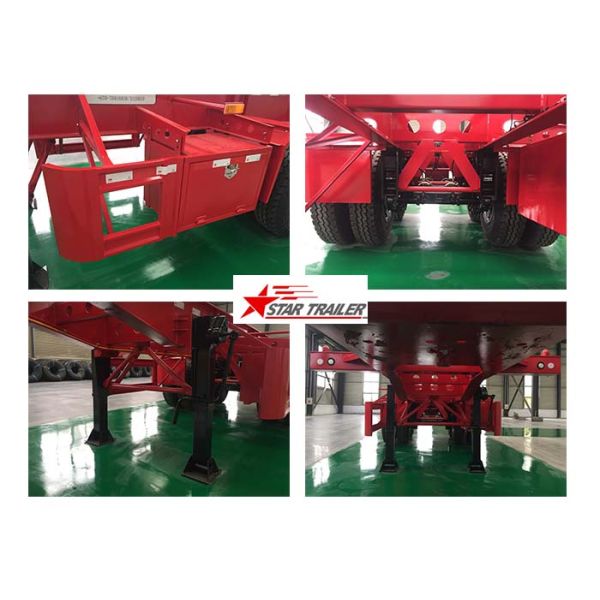

Product Details:
Product Accessories:
Our customers
FAQ:
1.Can I have sample of this type trailer to test the quality?
Of course yes, my friend and our MOQ is 1 unit.
2. What's the delivery time and can you lower the price?
It depends on the quantity. Usually it is within 40 days after the receipt of deposit. And my friend, the moer units ,the lower price..
3. Can I customize the trailer?
Yes, the design will be made according to your suggestion.
4. What's the payment terms?
30% by T/T as deposite and balance by T/T before delivery.,or by L/C at sight .
5. How do you ensure its quality?
There will be a warranty given to you ,to provide you a good after-sade-support.
